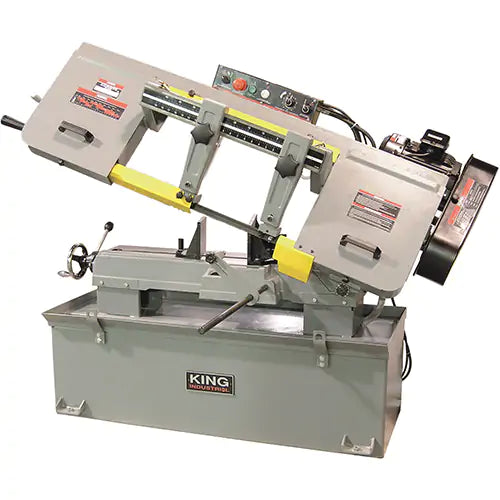

TLZ124-10" x 18" Metal Cutting Bandsaws

• Carbide ball bearing blade guides
• Centralized 24 V control panel and automatic shut-off
• Adjustable hydraulic down feed control
• Tru-Lock ™ cam lock and quick positioning vise system with fully adjustable jaws for 0° to 45° angled cuts
• To ensure reliable accurate cuts, both adjustable control arms can be positioned as close to the cut as possible
• Coolant system with regular valves provide an even flow of coolant to the blade

Specifications

• Cutting Capacity at 90°: Round 10" and 10" x 18" Rectangular
• Cutting Capacity at 45°: Round 10" and 7" x 9-3/8" Rectangular
• No. of Speeds: 4
• Overall Width: 27"
• Overall Length: 70"
• Overall Height: 42"
• Style: Horizontal

Additional Specifications

• Speeds: 4 (114, 196. 288, 377 FPM)
• Blade: 122" x 1" x 0.032"
• Motor: 2 HP, 2.6 A, 3 phase, 60 Hz
• Voltage: 600 V
• Weight: 600 V
