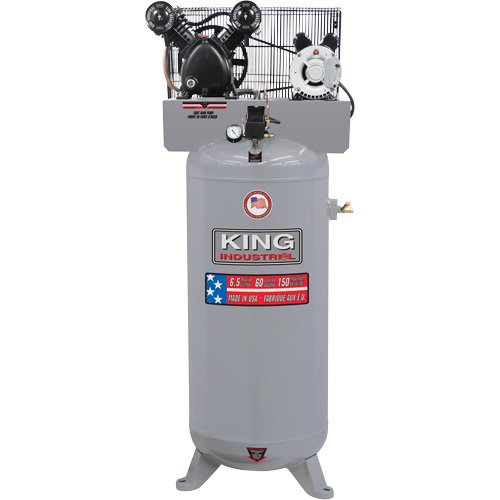

TLV742-Industrial Compressors

• 2-cylinder cast iron single stage oil lubricated pump
• ASME registered tank and safety valve
• Large intake filters
• Pump with V-style design minimizes vibration, improves cooling and extends compressor life
• Portable units are equipped with 9 1/2" pneumatics wheels and front handle
• Gas units are equipped with a 4-stroke air cooled OHV Honda gas engine
• Machine starts up at 6.5 HP (Peak HP), machine runs at 3 HP

Specifications

• Horse Power: 6.5 HP
• CFM: 11.2 at 90 PSI
• Electric/Gas: Electric
• Voltage/Phase: 240/1
• Tank Capacity: 50 Gal. (60 US Gal)
• Max. PSI: 135

Additional Specifications

• Air Delivery CFM- 40 PSI: 13.4
• Motor Amerperage: 15 Amps
• Pump RPM: 3450
• Wt. lbs.: 260
• Remarks: 260
• Factory Pressure Setting: 95 – 125 PSI
• Hertz: 60
