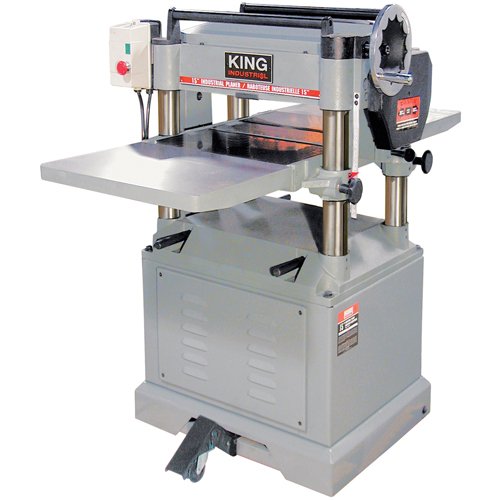

TJZ786-Planer

• 3-knife cutterhead
• Table raises and lowers on four precision ground columns for extra stability
• Anti-kickback fingers in front of the infeed roller to prevent wood kickback
• Magnetic safety switch
• Stock returns rollers on top of planer for multiple passes
• Extension tables provide support for longer material
• Lever allows you to shift gears for changing feed rates for excellent results in planning hard and soft woods
• Knives rest on adjustable jack screws; lock bar and lock screws keep knives in place
• Includes: Cabinet stand, planning knives, knife setting gauge and 4" dust collector outlet
• Weight: 625 lbs.

Specifications

• Overall Width: 42"
• Overall Length: 32-1/2"
• Overall Height: 45"

Additional Specifications

• Max planning width: 15"
• Max planning thickness: 6"
• Max depth of cut: 1/8"
• Cutter head speed: 5000 RPM
• Cutter head dia.: 5000 RPM
• Number of knifes: 3
• Feed rate: 2 (16/30) FPM
• Number of cuts/inch: 78/63
• Motor: 3 HP, 15 A, 1 phase, 60 Hz
• Voltage: 220 V
