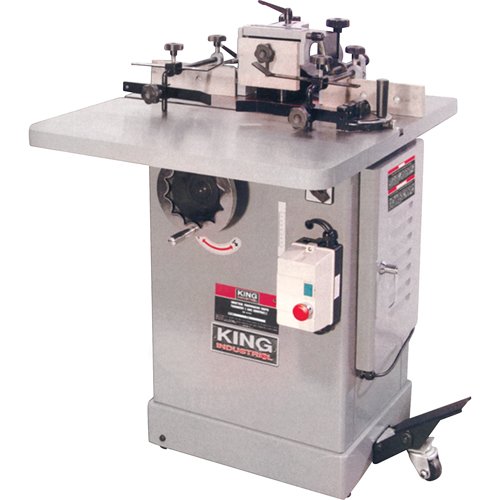

TJZ753-Industrial Woodworking Shaper

• Extra large heavy-duty cast-iron table and extension table are ground for accuracy
• Two spindle speeds, 8,000 & 10,000 RPM
• Spindle travels a full 3"
• Front mounted forward reverse switch and magnetic safety switch
• Adjustable fence system features a cutter guard, spring hold-downs and built-in 4" dust chute
• Motor is completely enclosed in cabinet for protection against dust
• Mobile base system built into the cabinet
• Comes complete with 1/2" and 3/4" interchangeable spindles, 1/4" and 1/2" router bit adaptors and a mitre gauge ; ; Model No. TJZ753; Mfg. No. KC-351S; Spindle dia: 1/2", 3/4"; Spindle speed: 8,000 RPM & 10,000 RPM; Spindle opening on table: 1 5/8", 3", 3-1/2", 7"; Under nut cap: (1/2") 3", (3/4") 3"; Table size: 28" X 30"; Table height: 34"; Motor: 3 HP, single phase, 60Hz, 15 A; Voltage: 220V; Dimensions: 31" x 30" x 46"; Weight: 342 lbs.;

Specifications

• Overall Width: 30"
• Overall Length: 31"
• Overall Height: 46"
• No Load Speed: 10000 RPM

Additional Specifications

• Motor: 3 HP, Single Phase, 60 Hz, 15 A
• Low Speed: 8000 RPM
• Spindle Diameter: 1/2", 3/4"
