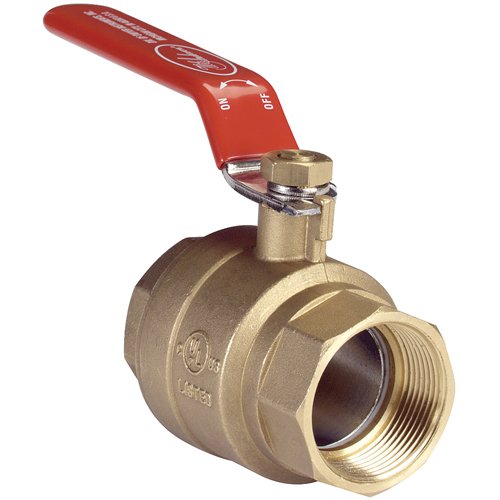

THZ611-Two-Piece Hand Lever Ball Valves - Series BV2MB

• ; Body: Two-Piece ; End Connections: 1/4" to 3" female NPT ; Pressure Limits: 1/4" to 1": 600 PSI (41.4 bar), 1 1/4" to 2": 400 PSI (27.6 bar), 2 1/2 to 3": 200 PSI (13.8 bar) WOG ; Wetted Materials: Body and body cap: forged brass (ASTM B283-C37700); ball and stem: brass; seat and packing Teflon® Temperature Limits: 10 to 200 °F (-12 to 93 °C) ; Other Materials: Body seal: rubber; handle: plated steel; nut and gasket: brass

Specifications

• Material: Brass
• Mechanism Type: Manual
• Pipe/Hose Diameter: 3/8"
• Connection Type: FNPT x FNPT

Additional Specifications

• Cv: 7.5
