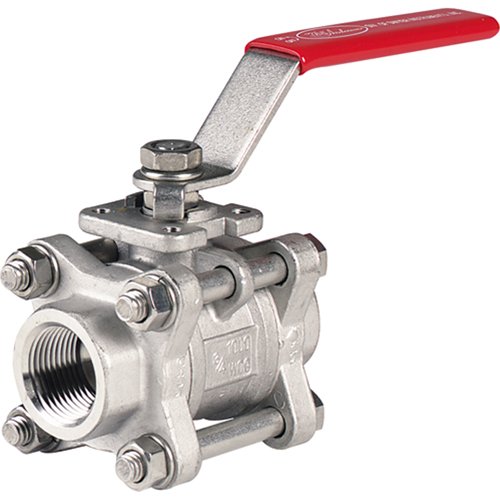

THZ606-Three-Piece Ball Valves - Series WE02

• ; End Connections: Female NPT ; Pressure Limits: 1000 PSI (68.9 bar) WOG; 150 PSI (10.3 bar) SWP ; Wetted Materials: Body, ball, end cap: CF8M SS; stem: 316 SS; seat, thrust washer: RTFE; stem packing: PTFE ; Temperature Limits: -20 to 392 °F (29 to 200 °C)

Specifications

• Material: Stainless Steel
• Mechanism Type: Manual
• Connection Type: FNPT x FNPT
