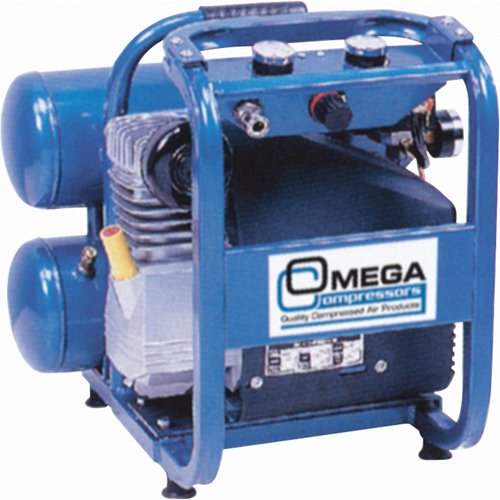

TFA012-Contractor Series Air Compressors

• Direct drive units have splash lubricated pump with cast iron sleeve for longer life
• Belt drive units have durable cast iron pumps
• Splash type lubrication
• All cast iron pumps have steel valves for longer life
• Flywheels designed for excellent pump cooling
• Manual reset for overload protection
• Dual control-start/stop with pressure switch or constant speed operation for electric belt drive unit
• All gas units equipped with Honda® gas engines
• Idle-down throttle control for gas belt drive units
• All units are factory tested prior to shipment
• 1-year warranty

Specifications

• Horse Power: 1.5 HP
• CFM: 4.6 at 125 PSI
• Electric/Gas: Electric
• Voltage/Phase: 115/1
• Tank Capacity: 3.3 Gal. (4 US Gal)
• Max. PSI: 125
• Sound Level (dBA): 83

Additional Specifications

• Amp Draw @ 125 PSI: 12
• Pump RPM: 3450
• Wt. lbs.: 65
• Remarks: Twin-Stack
• Manufacturer's Warranty: Twin-Stack
