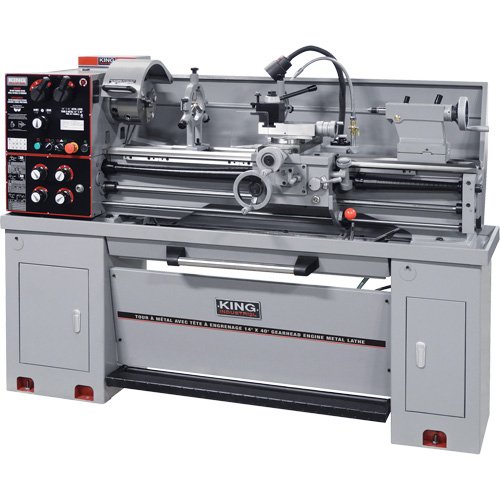

TEB022-Gearhead Metal Lathes

• w/o taper attachments
• Safety guard automatically shuts lathe off when lifted
• Full length spindle foot brake incorporated in the cabinet stand for easy operation and reliable safety
• Includes: 7"-3 jaw chuck, 8"-4 jaw chuck, imperial and metric gears, quick change tool posts, steady rest, follow rest, 12" D1-5 camlock face plate, coolant system, full length splash guard, thread chasing dial indicator, 2 MT#3 dead centers, MT#6-MT#3 sleeve, chip tray, tool box, halogen lamp, chuck keys, hex keys and cabinet stand (with foot brake incorporated)
• Weight: 2025 lbs.

Specifications

• Distance Between Centers: 40"
• Swing Over Bed: 14"
• Spindle Bore: 2"
• Overall Width: 32"
• Overall Length: 75"
• Overall Height: 53"

Additional Specifications

• Swing over cross slide: 8 5/8"
• Taper in headstock: MT#6
• Taper in tailstock: MT#3
• Total travel of cross slide: 6 3/16"
• Total travel of top slide: 6 3/16"
• Spindle speeds: 8 (70-2000 RPM)
• Thread cutting range: 34 (4-56 TPI) 26 (.4-7 MM)
• Motor: 2 HP, 11 A, 1 phase, 60 Hz
• Voltage: 240 V
