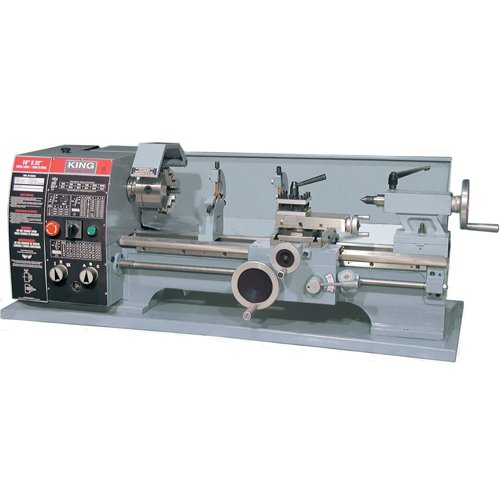

TEB020-Belt Drive Metal Lathes

• Safety chuck guard automatically shuts lathe off when lifted
• Includes: 5" 3-jaw chuck, 6 1/2" 4-jaw chuck, replacement gears, 4-way tool post, steady rest, follow rest, 8" face plate, thread chasing dial indicator, MT#3 dead center, full length splash guard, tool box, chuck key and hex keys

Specifications

• Distance Between Centers: 22"
• Swing Over Bed: 10"
• Swing Over Gap: 10"
• Spindle Bore: 1"
• Overall Width: 23"
• Overall Length: 50"
• Overall Height: 19"

Additional Specifications

• Swing over cross slide: 6"
• Taper in headstock: MT#4
• Taper in tailstock: MT#3
• Total travel of cross slide: 6 3/8"
• Total travel of top slide: 6 3/8"
• Spindle speeds: 6 (150-2400 RPM)
• Thread cutting range: 8-72 TPI
• Motor: 1 HP, 12 A, 1 phase, 60 Hz
• Voltage: 110 V
• Weight: 360 lbs.
