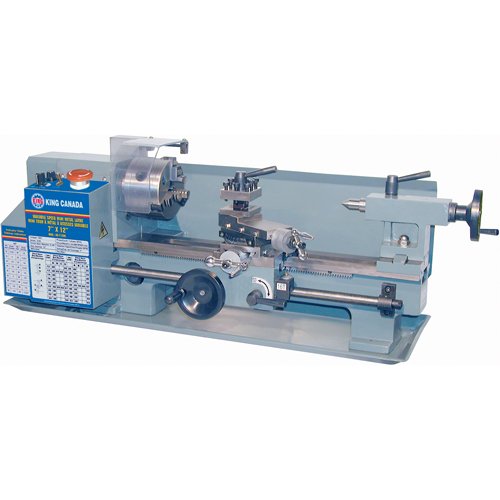

TEB019-Mini Metal Lathes
by King Canada
Original price
$1,505.60
-
Original price
$1,505.60
Original price
$1,505.60
$1,505.60
-
$1,505.60
Current price
$1,505.60
- Clear plastic safety guard automatically shuts lathe off when lifted
- Forward/reverse control
- Variable speed control: 0-2500 RPM
- Includes: 4" 3-jaw chuck, quick change gear box, replacement gears, 4-way tool post, MT#2 dead center, threading dial indicator, emergency stop button, chuck key and hex keys
Specifications
- Distance Between Centers: 12"
- Swing Over Bed: 7"
- Swing Over Gap: 7"
- Spindle Bore: 3/4"
- Overall Width: 11-1/2"
- Overall Length: 32"
- Overall Height: 13"
Additional Specifications
- Swing over cross slide: 4 1/2"
- Taper in headstock: MT#3
- Taper in tailstock: MT#2
- Total travel of cross slide: 2 3/4"
- Total travel of top slide: 2 3/4"
- Spindle variable speeds: 2 (0-1100 RPM, 0-2500 RPM)
- Thread cutting range: 12-52 TPI
- Motor: 5.5 A, 1 phase, 60 Hz
- Voltage: 110 V
- Weight: 85 lbs.
