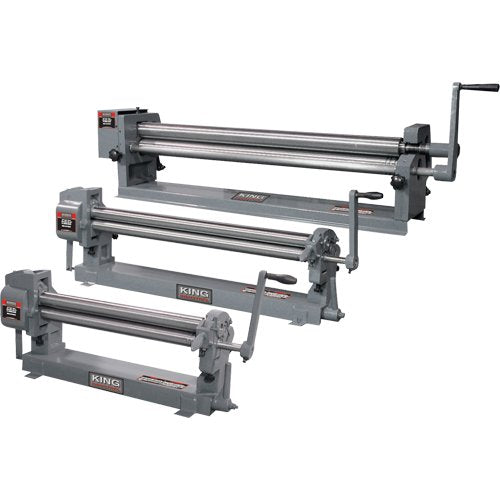

TCW452-Slip Rolls

• Heavy cast iron construction with front mounted handle for easy placement and release of workpiece
• Precision-turned tool steel rolls with wire grooves are ground and polished to offer accuracy and stability
• Hardened steel gearing
• Large roll adjusting screws facilitate lifting the upper roll for easy removal of material

Specifications

• Overall Width: 13"
• Overall Length: 42"
• Overall Height: 15"

Additional Specifications

• Max. Length: 24"
• Capacity (mild steel): 22 Gauge
• Diameter of rolls: 2"
• Min. forming radius: 1"
• Wire groove diameters: 1"
• Gearing ratio: 0.042361111111
• Weight: 180 lbs.
