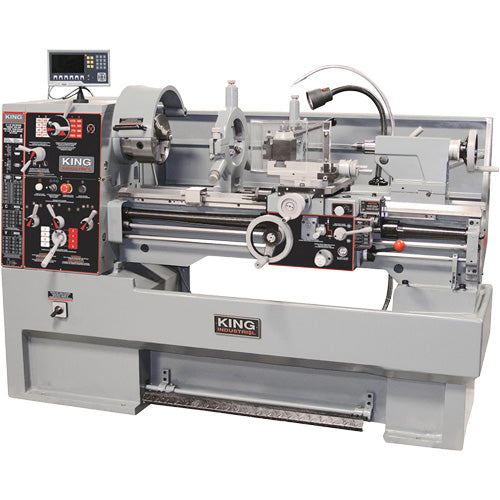

TCV131 - Metal Lathe/Taper Attachment with Digital Readout

Description

• Powerful 600V, 3 phase, 2 speeds 4 HP moto
• 2 axis (X, Y) digital readout (DRO) for precise operations and repeatable results
• Safety features include line interruption switch system, chuck safety guard with limit switch protection, lead screw protectors and tool post safety guard
• Totally enclosed gearbox allows cutting Inch, Metric, Whitworth, Modular and Diametrical threads
• Guideway is all induction hardened and precision ground
• Spindle foot brake incorporated in the full length cabinet stand
• 0.002" - 0.067" longitudinal feed range
• 0.0011" - 0.038" transversal feed range
• 2-speed motor: 4 HP/ 5 Amp., 600V, 3 phase, 60 Hz
• Coolant pump motor: 1/8 HP/ 600V, 3 phase, 60 Hz

Additional Specifications

• Includes: 8”-3 jaw chuck with inside and outside jaws; 12”-4 jaw chuck; quick change tool post and two 3/4” tool holders; steady and follow rests with roller guides; 14” (D1-6)camlock face plate; MT #4 standard dead centre; MT #4 carbide tipped dead centre; MT #4 to MT #6 spindle sleeve adapter; halogen light; coolant system; full length splash guard; manual micrometer carriage stop; tool box; wrenches
• Swing Over Cross Slides: 10"
• Width of Bed: 10"
• Taper in Spindle Bore: MT #6
• Range of Spindle Speeds: 16 (45-1,800 RPM)
• Number & Range of Inch Threads: 45 (2-72 TPI)
• Number & Range of Metric Threads: 39 (0.2 - 14 mm)
• Number & Range of Modular Pitches: 18 (0.3 - 3.5 MP)
• Number & Range of Diametrical Pitches: 21 (8 - 44 DP)
• Tailstock Centre Taper/Travel: MT #4, 4-3/4"
