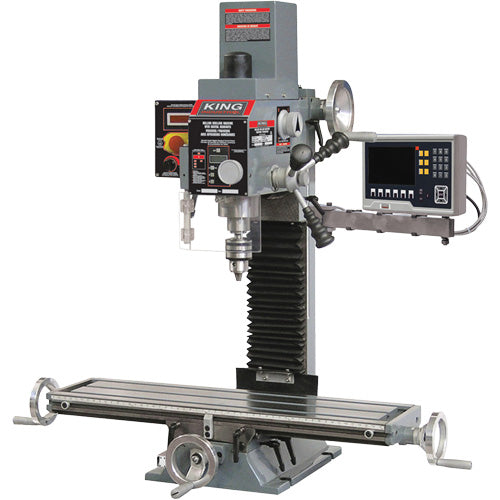

TCV129 - Milling Drilling Machine with 3-Axis Digital Readout

Description

• Powerful 1 HP, 120V single phase DC motor
• 3 axis (X, Y, Z) digital readout (DRO) for precise operations and repeatable results
• Safety guard with limit switch protection
• Spindle depth digital readout and control panel with metric and imperial readings
• Spindle RPM digital readout & spindle depth fine feed knob
• Forward/reverse switch and variable speed selector dials
• Coolant trough in table
• 1/2" T-slot on table
• 220V, 1 phase, 60Hz
• 3/4" drilling capacity in cast iron, 5/8" drilling capacity in steel
• 4.8 Amp., 2,250 RPM motor

Additional Specifications

• Includes: Milling drilling machine; 1/2" chuck; chuck key; R8 chuck arbor; safety guard; 2 T-bolts; oil bottle; adjustment wrenches; hex keys; tool box
• Max. Distance Spindle Nose to Table: 13"
• Swing: 13"
• Spindle Taper: R8
• Spindle Stroke: 2"
• Cross Travel: 6-7/8"
• RPM: 50-1,125 / 100-2,250
• Face Mill Capacity: 2-1/2"
• End Mill Capacity: 3/4"
• Max. Longitudinal Travel: 18-7/8"
