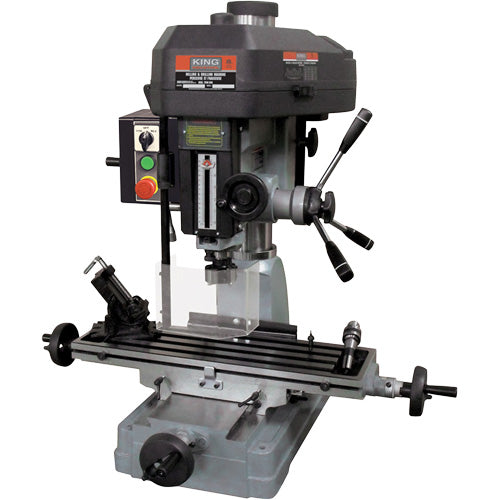

TCV128 - Milling Drilling Machine with Forward/Reverse

Description

• Safety guard with limit switch protection
• Magnetic line interruption switch needs a restart after a power failure
• Pulley cover with limit switch protection
• Spindle is equipped with four heavy-duty tapered roller bearings
• Table control hand wheels have large micrometer dials graduated in .001"
• Head swivels 360° and is easily raised and lowered
• 11 amp motor
• 5/8" T-slot on table
• 220V, 1 phase, 60Hz
• 7-1/4" Cross travel

Additional Specifications

• Includes: Milling drilling machine; 3" face cutter; 1/2" chuck with key; 3-1/2" angle vise; safety guard
• Max. Distance Spindle Nose to Table: 18-7/8"
• Swing: 16-1/2"
• Spindle Taper: R8
• Spindle Stroke: 5"
• Diameter of Column: 4-3/4"
• RPM: 150 - 2500
• Face Mill Capacity: 3"
• End Mill Capacity: 3/4"
• Max. Longitudinal Travel: 17"
