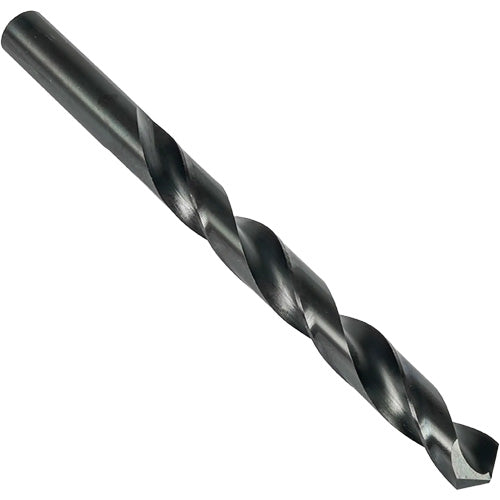

TCV097 - R18B Type B Heavy-Duty Jobber Drill

TCV097 - R18B Type B Heavy-Duty Jobber Drill

by Dormer
SKU: TCV097
$43.31 - $43.31
$43.31
$43.31 - $43.31
$43.31

Description

  • HSS with steam tempered finish for 4xD drilling without pecking in steel and cast iron
  • 135° heavy duty split point
  • Steam tempered (steam oxide) surface treatment
  • Cylindrical shank/straight shank
  • Right hand rotation/cutting
  • 4xD usable tool depth to diameter ratio
  • Meets NAS907 aerospace drill standard

Additional Specifications

  • Surface Treatment: Steam Tempered (Steam Oxide)
  • Standard(s) Met: NAS907, ISO, ANSI
  • Shank Type: Straight
  • Connection Diameter: 3.66 mm
  • Standards Met: NAS907 Type B – Aerospace Drill Standards
  • Cutting Diameter: 3.66 mm
  • Cutting Direction: Right Hand
  • Weight: 5 g
