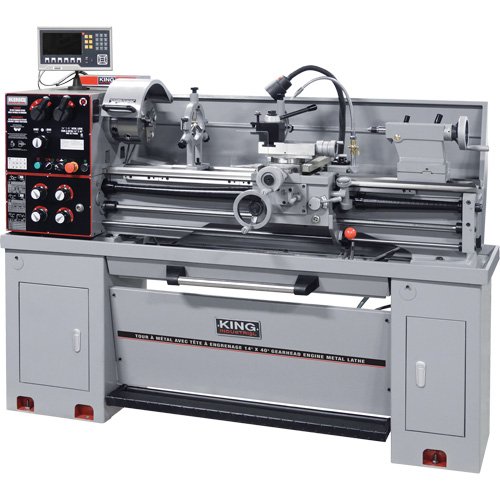

TCU867 - Metal Lathe/Taper Attachment & DRO

TCU867 - Metal Lathe/Taper Attachment & DRO

by TG Store
SKU: TCU867
$14,530.64 - $14,530.64
$14,530.64
$14,530.64 - $14,530.64
$14,530.64

Specifications:

  • Distance Between Centers: 40"
  • Swing Over Bed: 14"
  • Spindle Bore: 2"
  • Overall Width: 32"
  • Overall Length: 75"
  • Overall Height: 53"

Description

  • Powerful 2 HP motor

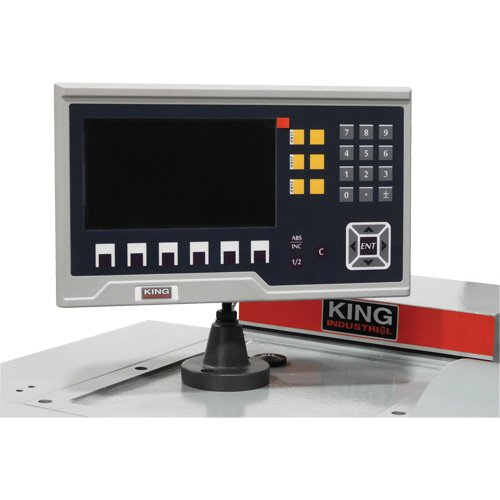

  • 2 axis (X, Y) digital readout (DRO) for precise operations and repeatable results
  • Safety guard with limit switch protection
  • Line interruption switch system needs a restart after power failure
  • Guideway and gears in headstock are all hardened and precision ground
  • Spindle foot brake incorporated in the cabinet stand for easy operation and reliable safety
  • Features 7"-3 jaw chuck, 8"-4 jaw chuck, imperial and metric gears, quick change tool posts, steady rest, follow rest,12" D1-5 camlock face plate, coolant system, full length splash guard, thread chasing dial indicator, 2 MT#3 dead centers, MT#6-MT#3 sleeve, chip tray, tool box, halogen lamp, chuck keys, hex keys, and cabinet stand (with foot brake incorporated)
  • Swing Over Cross Slide: 8-5/8"
  • Taper In Headstock: MT #6
  • Taper In Tailstock: MT # 3
  • Width of Bedways: 7-5/16"
  • Total Traverse of Cross Slide: 6-3/16"
  • Total Travel of Top Slide: 3-1/2"
  • Spindle Speeds: 8 (70-2,000) RPM
  • Thread Cutting Range: 34 (4-56 TPI) 26 (0.4-7 mm)
  • Motor: 11 Amp
    •
