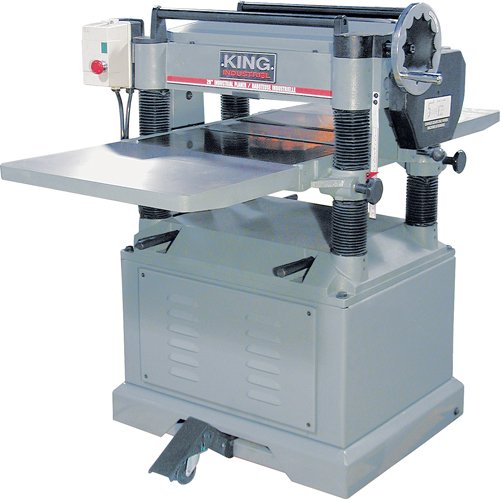

TBW141-Planer

• Table raises and lowers on four precision ground columns
• Solid cast iron extension table provides support for longer material
• Mobile base system built into cabinet
• Anti-kickback fingers in front of the infeed roller prevent wood kickback
• Includes: Magnetic safety switch, planing knives, knife setting gauge and 4'' dust collector outlet ; ; Model No. TBW141 ; Mfg. No. KC-520C; Max. planing width: 20" ; Max. planing thickness: 8" ; Max. depth of cut: 3/32" ; Total surface of work table: 56 1/2" x 20"; Cutter head speed: 5000 RPM; Cutter head diameter: 3.15" ; Number of knives: 4; Feed rate: 2 (16 - 20) FPM ; No. cuts per inch: 104-83 ; Motor: 18 A, single phase, 60 Hz ; Voltage: 220 V; Dimensions: 40" L x 56 1/2" W x 42" H; Weight: 880 lbs.

Specifications

• Overall Width: 56-1/2"
• Overall Length: 40"
• Overall Height: 42"
• No Load Speed: 5000 RPM

Additional Specifications

• Feed Rate: 2 (16 - 20) FPM
• Max. Planing Width: 20"
• Max. Planing Thickness: 8"
• Max. Depth of Cut: 8"
• Cutter Head Diameter: 3.15"
• No. of Knives: 4
• Work Table Surface: 56-1/2" x 20"
• Motor: 19 Amp
• Voltage: 220V, 1 Phase, 60 Hz
