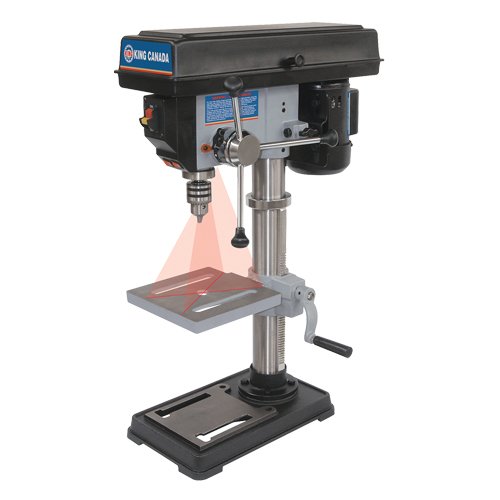

TBW135-Drill Presses With Laser

• Dual intersecting adjustable laser guides
• Spindle is supported by high quality ball bearings
• Switch located at the front of the machine for easy access
• Positive depth stop for quick and easy adjustment
• 45° tilting table for angular drilling
• Includes: 1/2" drill chuck and key

Specifications

• Swing: 10"
• Chuck Size: 1/2"
• No Load Speed: 3050 RPM
• Table Dimensions: 7-3/4" W x 7-3/4" L
• Overall Width: 18-1/2"
• Overall Length: 11"
• Overall Height: 29"

Additional Specifications

• No. of Speeds: 5
• Speed Range: 570-3050 RPM
• Spindle Taper: #33 Jacobs
• Motor: 3.2 A, 1 phase, 60 Hz
• Voltage: 3.2 A, 1 phase, 60 Hz
• Weight: 70 lbs.
