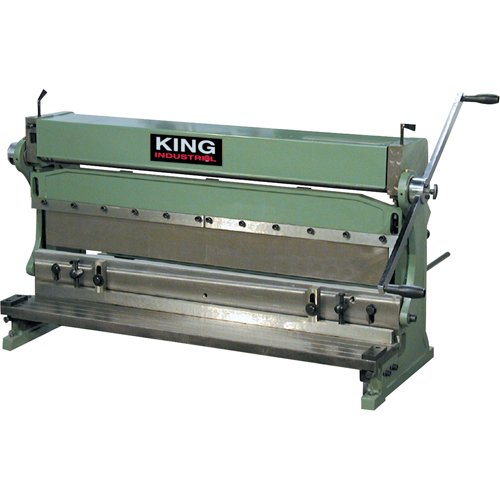

TBM408-Shears, Brake & Roll

• Sturdy cast iron frame
• Dual edge, reversible shear blade
• One female "V" shaped die
• Slip rolls are precision turned, ground and polished with wire grooves
• Includes: Adjustable length stop, height stop block and extension bars with 90° angles

Specifications

• Shear Max. Thickness: 20 Gauge
• Shear Max. Length: 40"
• Shear Material Stop Range: 3-3/4" - 30"
• Brake Max. Thickness: 20 Gauge
• Brake Shut Height: 4-1/2"
• Brake Material Stop Range: 1/2"- 28"

Additional Specifications

• BRAKE Max. Thickness (Mild Steel): 20 Gauge
• BRAKE Male Die Sizes: 15", 10", 7", 4", 2", 1-1/2", 1"
• SLIP ROLL Number of Rolls: 3
• SLIP ROLL Max. Thickness (Mild Steel): 20 Gauge
• SLIP ROLL Max. Length: 20 Gauge
• SLIP ROLL Roller Diameter: 2"
• SLIP ROLL Min. Radius: 3/4"
• Overall Dimensions: 50" L x 30" W x 26" H
• Weight: 450 lbs.
