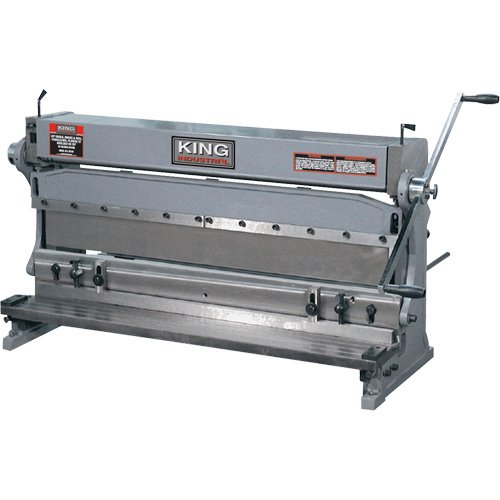

TBM407-Shears, Brake & Roll

• Sturdy cast iron frame
• Dual edge, reversible shear blade
• One female "V" shaped die
• Slip rolls are precision turned, ground and polished with wire grooves
• Includes: Adjustable length stop, height stop block and extension bars with 90° angles

Specifications

• Shear Max. Thickness: 22 Gauge
• Shear Max. Length: 30"
• Shear Material Stop Range: 1/2"- 25"
• Brake Max. Thickness: 22 Gauge
• Brake Shut Height: 4-1/2"
• Brake Material Stop Range: 1/2"- 25"

Additional Specifications

• BRAKE Max thickness (mild steel): 22 gauge
• BRAKE Male die sizes: 10", 6", 4", 3", 2", 1"
• SLIP ROLL Number of rolls: 3
• SLIP ROLL Max thickness (mild steel): 22 gauge
• SLIP ROLL Max. length: 22 gauge
• SLIP ROLL Roller diameter: 1 1/2"
• SLIP ROLL Min. radius: 3/4"
• Overall dimensions: 39" L x 16" W x 24" H
• Weight: 290 lbs.
