SHR904 - Lithium-ion Storage Cabinet with 90-Minute Fire Resistance

Description

• For storage of undamaged lithium-Ion batteries
• All-round protection: 90 min fire protection from the outside in and inside out
• Propagation-tested, insulated shelves designed to slow fire propagation, which limits flame propagation across storage levels while supporting efficient waste heat
• With permanently self-closing doors and quality oil-damped door closer

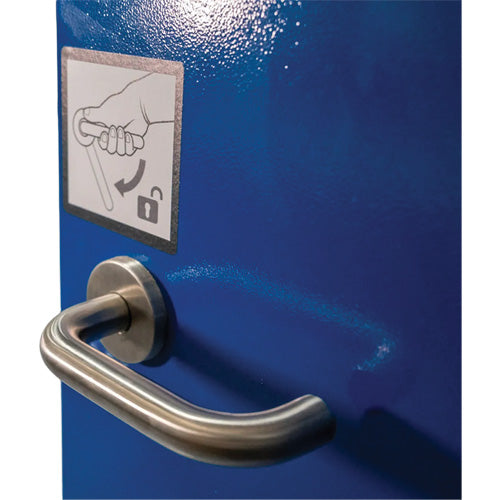

• Doors can be locked with a profile cylinder (closing system compatible) and lock indicator (red/green)
• Accessible underneath, allowing for easy moving and quick rapid evacuation in an emergency
• With adjustable feet to be used on uneven floor surfaces
• Extremely robust construction with scratch -proof paints
• Recommend that the cabinets are sited at ground floor-level so that evacuation can take place quickly in the event of an incident
• The quantity of batteries should match the quantity of battery units and chargers, collectively covering 60% of the grid shelf space
• Type-tested fire resistance of 90 minutes (type 90) from outside to inside in accordance with DIN EN 14470-1, fire resistance of 90 minutes from inside to outside in accordance with the DIN EN 1363-1 standard
• Cabinets with a similar fire-resistant construction have been tested to FM/UL/EN standards for flammable liquid storage

Additional Specifications

• Application: Lithium Batteries, Lithium-ion Battery
• Energy Containment Rating: 1.1 kWh per Shelf, 5.5 kWh per Cabinet
• Fire Rating: 90 min.
• Material: Sheet Steel
• Surface Type: Powder Coated
• Weight: 655 lbs.
• Internal Dimensions: 17.7" L x 20.5" W x 64.8" H
