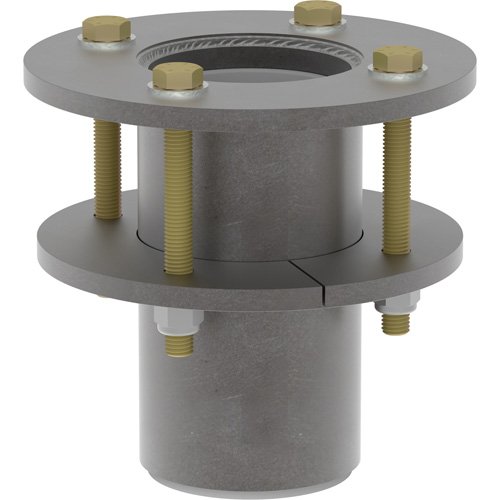

SHP258 - DBI-SALA® Confined Space Deck Mount Base, Stainless Steel

SHP258 - DBI-SALA® Confined Space Deck Mount Base, Stainless Steel

by TG Store
SKU: SHP258
$2,278.33 - $2,278.33
$2,278.33
$2,278.33 - $2,278.33
$2,278.33

Specifications:

  • Part: Base

Description

  • Designed to be installed through and clamp to flooring ranging in thickness from 13mm (.51 in) to 90mm (3.54") using included mounting hardware
  • Combines with 3M™ DBI-SALA® Davit Mast to form a confined space rescue and work support system
  • Mounts directly onto horizontal work surfaces
  • 360 degree davit mast rotation
  • Thermoplastic davit mast sleeve liner reduces friction and aids in davit rotation
  • Permanent installation
  • Allows for two users to connect to the system (one user operating the davit and one entering the confined space)
  • Maximum Number of Users: 2
  • Specifications Met: EN 795 Type A, AS/NZS 5532, CEN/TS 16415 Type A, 29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502, EN 1496:2006 (Clause 4.6)
  • Mast/Sleeve Diameter: 4" (10 cm)
  • Weight Capacity: 750 lbs.
    •
