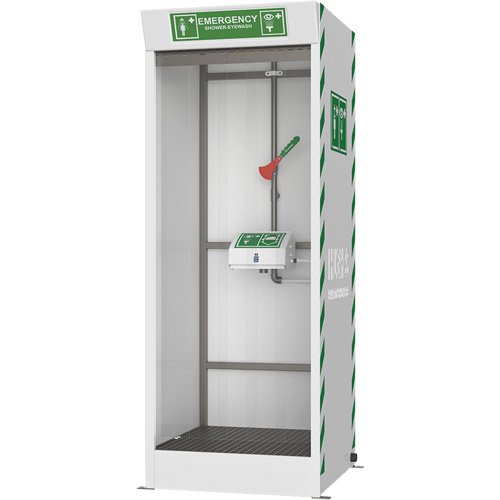

SHL786-Emergency Cubicle Shower & Covered Eye & Face Wash

• Integral drain sump and strip screens fitted to entrance reduce the risk of surplus contaminated water outside of the cubicle area
• Eye/face wash with integral, durable acrylic capped ABS lid protects against dust and debris—activate by simply pulling down the cover
• Designed for locations where space is at a premium or the emergency safety shower needs to be enclosed, this all-in-one ANSI-compliant combination cubicle shower and eye/face wash helps prevent overspray and is activated by hand upon entry
• The cubicle shower has a stainless steel hollow section frame enclosed in GRP sheeting with stainless steel pipes for corrosion resistance and extended life
• The exterior sheeting includes universal pictogram signs and green and white safety stripes
• Mounted on the inside of the cubicle for maximum benefit, the eye/face wash with high, ANSI-compliant flow rate includes aerated diffusers with fine mesh strainers and an individual flow controller which provide a soft, scrubbing action to the eyes and face
• Covered bowl also ensures that the eyewash nozzles and bowl remain clean and free from contamination at all times—no dust covers needed. Easy-to-reach flow regulator valve positioned on side of bowl adjusts to suit the severity of the accident
• The system features a specially designed, high-performance quarter-turn ball valve made of 316L stainless steel to endure the harshest environments and site conditions
• Low operating torque to open valve offers reliable, easy on/off operation when emergencies occur
• Valve includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure

Additional Specifications

• Manufacturer's Warranty: 1 Year
• Inlet Location: Middle
• Water Inlet: 1" (M)
• Operating Pressure: 29 - 87 PSI
• Water Flow (Shower/Body): 29 - 87 PSI
• Water Flow (Eye/Face): 11.4 Litres/min.
