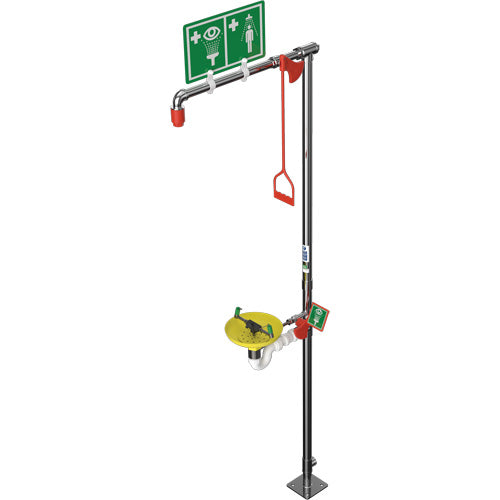

SHL778-Combination Shower with Open ABS Bowl & Top Inlet

• Removable, self-draining nozzle constructed from a durable nylon material
• High-performance quarter-turn ball valves made of 316L stainless steel endure the harshest environments and site conditions— low operating torque offers reliable, easy on/off operation
• Twin aerated diffusers with fine mesh strainers and an individual flow controller provide a soft, scrubbing action to the eyes and face
• Includes a universal eye wash and safety shower sign for enhanced visibility
• Meets ANSI Z358.1 2014 and EN 15154 standards, supports OSHA requirements
• Be prepared to respond to accidents with this all-in-one floor mounted combination safety shower with top water inlet that provides initial on-site treatment to eye/face or full body exposure to hazards
• Suitable for use in applications that are not subject to the possibility of freezing or overheating
• The system features a specially designed valve that includes an integral, heavy-duty stainless steel stop-plate to handle rough operation without failure
• Durable, coated stainless steel pull handle with nylon valve connection is easy to grip and activate for immediate water drenching
• Designed for high flow rates that meet or exceed ANSI standards, the nozzle offers optimal spray distribution for user protection
• Unlike shower rose designs, this compact nozzle reduces the potential for insect nesting and eliminates high replacement costs associated with cracked or dented plastic spray heads
• Open ABS plastic bowl eye/face wash with high, ANSI-compliant flow rate features twin spray nozzles with dust covers that pop-off when eye wash is activated via the highly visible push plate
• Easy-to-reach flow regulator valve adjusts to suit the severity of the accident
• Solid construction using galvanized mild steel pipework
• Add optional foot treadle for a secondary means of eyewash activation
• Some assembly may be required

Specifications

• Installation Type: Pedestal

Additional Specifications

• Manufacturer's Warranty: 1 Year
• Inlet Location: Top
• Water Inlet: 1-1/4" (F)
• Operating Pressure: 29 - 87 PSI
• Water Flow (Shower/Body): 29 - 87 PSI
• Water Flow (Eye/Face): 11.4 Litres/min.
