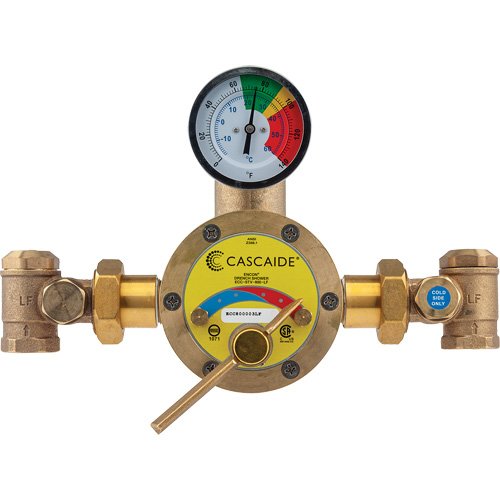

SGX711-Mixing Valve for Exposed Assembly of Drench or Combination Emergency Shower

• Locking temperature regulator to prevent accidental movement set for 85°F (29°C)
• Mixing valve will close down on failure of cold water supply
• Mixing valve with special internal cold water bypass capable of 20 GPM (76 l/min) @ 30 PSI (2.1 Bar) upon failure of hot water supply
• Adjustable high temperature limit stop * set for 90°F (32°C)
• Full 1" top or bottom inlets and 1-1/4" top outlet
• Integral wall support
• Dial thermometer (range 0 to 140°F, -10 to 60°C)
• Rough bronze finish
• Union angle checkstops on inlets
• A method to assist in achieving compliance to ANSI Z358.1

Specifications

• Gallons Per Minute (GPM): 56 GPM

Additional Specifications

• Minimum Gallons Per Minute: 3 GPM
• Maximum Supply Temperature: 180°F (82°C)
• Maximum Supply Pressure: 125 PSI (8.6 Bar)
