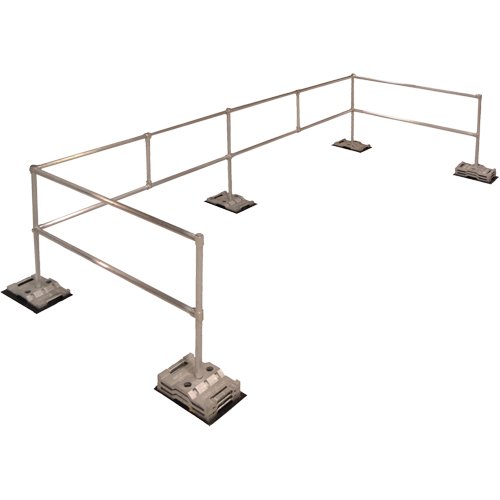

SFJ621-RoofGuard Classic System - Packaged Kits

• Provides 18ft of leading edge protection with two 6ft sections for weighted ballast
• Hinged, variable fitting in the centre of the 18ft section allows for complete versatility when setting the system up
• It can be straight, at 90 degrees, or anything in between, depending on the requirement
• Pre-engineered in a singular crate, most parts are pre-assembled with simple to follow instructions and a singular tool for installation
• Free standing, portable, modular systems are constructed with corrosion resistant lightweight aluminum tubing and utilize counter weighted base plates, no roof penetration is required meaning your roof remains intact
• Unique, low profile, stackable base plate design at only 40lbs with a built in carry handle allows for easy, ergonomically friendly installation
• Designed to meet of exceed all major governing bodies fall protection requirements including, ANSI, OSHA, MOL
• All parts and materials are supplied in a singular crate
• Custom Rooftop Guardrail Systems are available upon request
• Includes: Singular tool supplied for assembly, Complete installation manual and layout drawings, 9 Counter weighted base plates, 5 Rubber mats to protect rooftop membrane, 5 Pre-assembled vertical posts, 8 Horizontal Rails, Set Screws

Specifications

• Material: Aluminum
• Width: 72"
• Length: 216"
• Height: 42"

Additional Specifications

• Shipping Crate Dimensions: 22" W x 108" L x 24" H
