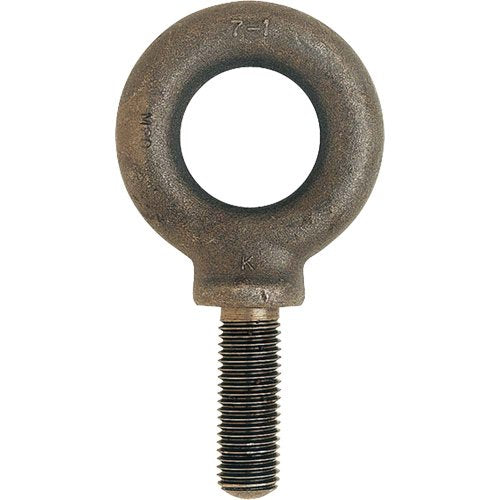

QD484-SAE Eyebolt

QD484-SAE Eyebolt

by Gray Tools
SKU: QD484
$12.48 - $12.48
$12.48
$12.48 - $12.48
$12.48
  • Forged from bar quality fine grain C1030 / C1035 steel bar
  • Proof-tested in accordance with ASTM A489 and Federal Spec. ANSI B18.15
  • Rated capacity is for 0° vertical pulls

Specifications

  • Working Load Limit: 3200 lbs. (1.6 tons)
  • Eye Diameter: 1-1/4"
  • Shank Length: 1-5/8"
  • Body Style: With Shoulder
  • Shank Threading: Fully Threaded

Additional Specifications

  • Thread Size: 9/16"-12
  • Outer Eye Diameter: 2-5/16"
  • Overall Length: 4-1/2"
  • Net Weight: 0.51 lbs.
  • 0.51 lbs.
