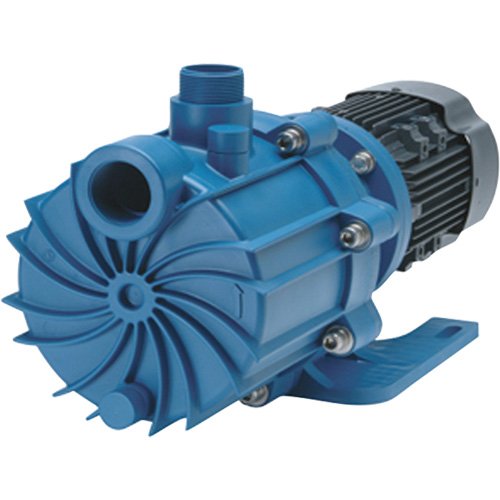

PUN314 - Self-Priming Magnetic Drive Pump with Carbon Bushing

Specifications:

• Intake Size: 1-1/2"
• Discharge Port Size: 1-1/2"
• Motor: 2 HP
• Suction Head: 68'

Description

• Self-priming, magnetic drive
• Provides up to 25 ft. (7.6 m) lift or equivalent
• Primes 15 ft. (4.6 m) in < 2 minutes with maximum diameter impeller
• Retains fluid for re-priming when shut off without a check valve
• Extended run dry ability (with carbon bushing)
• High operating efficiency
• Polypropylene construction
• Powerful neodymium magnets
• Close-coupled design
• Threaded (NPT or BSP), union or flange connections
• Back pullout design
• Mounts to NEMA and (B5 & B14) IEC motor frames
• Easy set measurement free drive
• ISO 1940 G2.5 balancing
• CE certified
• High working pressure up to 80 psi (5.5 bar)
• Specific gravity over 1.8
