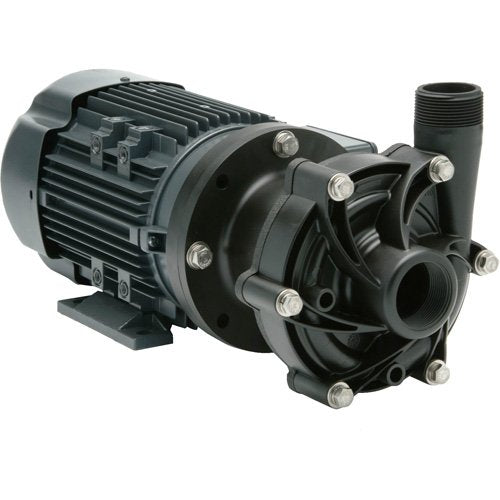

PUN301 - Magnetic Drive Pump with PTFE Bushing

SKU: PUN301
Original price $2,134.76 - Original price $2,134.76
Original price
$2,134.76
$2,134.76 - $2,134.76
Current price $2,134.76

Specifications:

  • Intake Size: 1-1/2"
  • Discharge Port Size: 1-1/2"
  • Motor: 3/4 HP

Description

  • High operating efficiency
  • Powerful neodymium magnets
  • Close-coupled design
  • Threaded NPT connections
  • Horizontal or vertical installation
  • Back pullout design
  • Mounts to IEC 56, 63, 71 B14 motor frames
  • Easy set, measurement free drive
  • CE certified
  • Working pressure to 60 psi (4.1 bar)
  • Specific gravity up to 1.8
  • Viscosity up to 50 cP
  • Manufacturer's Warranty: 5 Years
  • Connection Type: NPT
  • Material: PVDF
  • Power: 115-208-230 V, 60 Hz
  • Motor Type: Induction
  • Applications: Acids, Caustics, Sodium Hypochlorite, Plating Solutions, DI-Water
  • Motor Enclosure: TEFC
