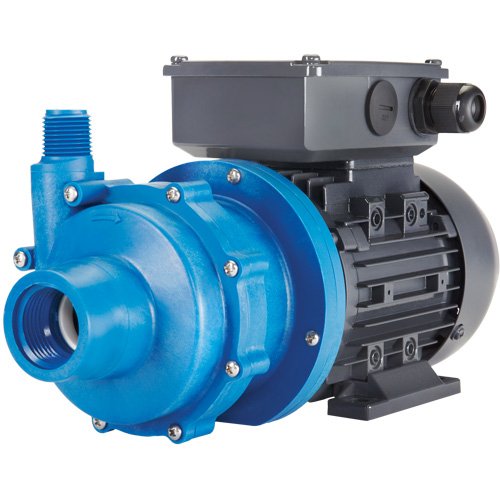

PUN280 - Magnetic Drive Pump with Carbon Bushing

PUN280 - Magnetic Drive Pump with Carbon Bushing

by TG Store
SKU: PUN280
$712.91 - $712.91
$712.91
$712.91 - $712.91
$712.91

Specifications:

  • Intake Size: 1"
  • Discharge Port Size: 1/2"
  • Motor: 1/8 HP
  • Suction Head: 20.4'

Description

  • Extended run dry ability (with carbon bushing)
  • High operating efficiency
  • Powerful neodymium magnets
  • Close-coupled design
  • Threaded NPT connections
  • Horizontal or vertical installation
  • Back pullout design
  • Mounts to IEC 56, 63, 71 B14 motor frames
  • Easy set, measurement free drive
  • CE certified
  • Working pressure to 60 psi (4.1 bar)
  • Specific gravity up to 1.8
  • Viscosity up to 50 cP
  • Manufacturer's Warranty: 5 Years
  • Connection Type: NPT
  • Impeller Size: 2.3"
  • Magnet Type: 4-Pole
  • Material: Polypropylene (PPG)
  • Max. Flow: 15 GPM
  • Max. Operating Temperature: 180°F (82°C)
  • Max. Pressure: 60 PSI
  • Pressure Rating: 4.1 Bar
    •
