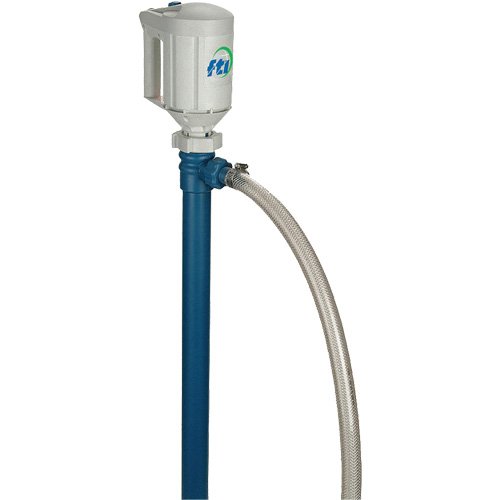

PUN240-PFP Drum Pump

• Unique double suction impeller provides high flow and high head
• Designed for container-to-container transfer of acids, corrosives, and chemicals
• Interchangeable with motors
• Greater flow control with variable orifice discharge
• Maximum viscosity of 2000 cP with electric motor, 330 cP with air motor
• Built-in hose and cord clips
• 40 GPM maximum flow with electric motor, and 22 GPM with air motor
• Maximum head of 80' with electric motor, and 38' with air motor

Specifications

• Max. Flow Rate: 40 GPM/22 GPM
• Material: Polypropylene/PVDF

Additional Specifications

• Tube Diameter: 2"
• Discharge Size: 1"
• Discharge Type: Hose Barb with Variable Orifice
• Hose Size: 1"
• Maximum Specific Gravity: 1"
• Temperature Range: 35° F (1.7° C) to 160° F (71° C)
