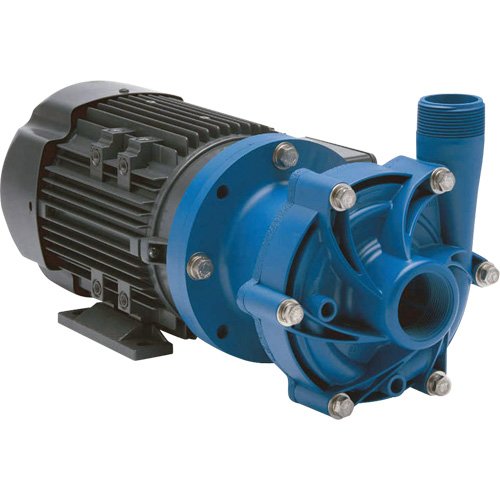

PUN238-DB10 Sealless Plastic Pumps

PUN238-DB10 Sealless Plastic Pumps

by TG Store
SKU: PUN238
$2,013.43 - $2,013.43
$2,013.43
$2,013.43 - $2,013.43
$2,013.43
  • Applications include water and wastewater, electronics, pharmaceuticals, wet scrubber, pulp and paper, electroplating and anodizing, and chemical manufacturing

Specifications

  • Intake Size: 1-1/2"
  • Discharge Port Size: 1-1/2"

Additional Specifications

  • Connection Types: NPT, BSP, Flange, or Union
  • Maximum Specific Gravity: Over 1.8
  • Maximum Working Pressure: 80 PSI (5.5 Bar)
  • Flow Range @ 3450 RPM: 0.5 to 96 GPM
  • Flow Range @ 2900 RPM: 0.5 to 96 GPM
  • Maximum Temperature: Polypropylene 180° F (82° C)& PVDF 220° F (104° C)
  • Configuration: Horizontal
