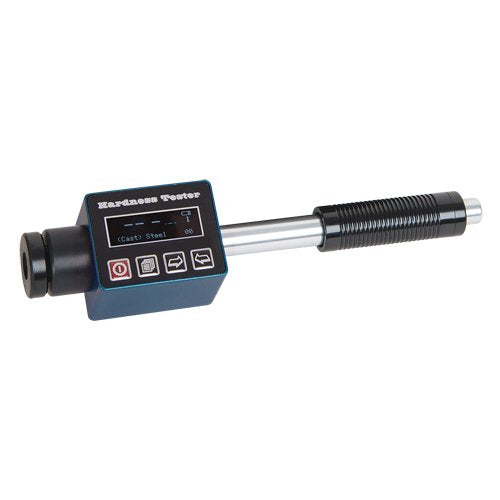

NJW195-REED R9030 Hardness Tester with ISO Certificate

• Rebound hardness testing is particularly useful for large, coarse grained materials, forged parts and all types of cast materials
• Measures the velocity of a propelled impact body directly before and after the impact onto the test material's surface
• Capable of automatically converting and displaying measurements into Rockwell (HRC, HRB, HRA), Brinell (HB), Leeb (HL), Vickers (HV) and Shore (HS) hardness values
• Materials that can typically be tested include cast steel, alloy tool steel, stainless steel, aluminum, bronze, copper, cast irons, etc.
• Conversion of measurements to tensile strength (U.T.S.)
• Can store up to 350 groups of information including: measurement value, mean value, testing date, impact direction, impact times, material and hardness scale
• Mini USB data interface
• Operates on a rechargeable lithium battery
• 128 x 32 dot matrix LCD with battery life display
• Includes: R9030 Hardness Tester, D Impact Device, Small Supporting Ring, Leeb Test Block, Nylon Brush, Battery Charger, Data Processing Software, Communication Cable

Specifications

• Display Type: Analogue

Additional Specifications

• Hardness Scale: HL, HRC, HRB, HRA, HV, HB, HS
• Measuring Range: HLD (170 to 96), HRA (59 to 85m), HRB (13 to 100), HRC (20 to 68), HB (19 to 651), HV (80 to 967), HS (30 to 100)
