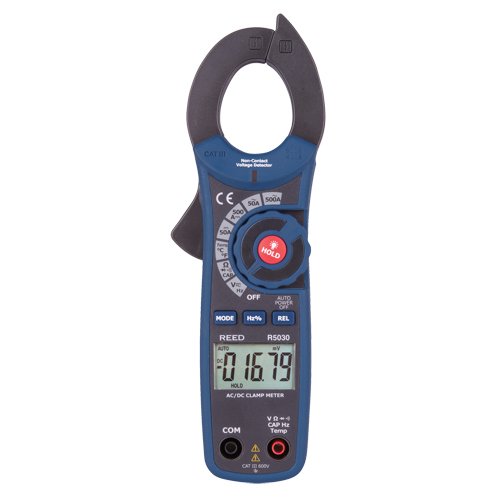

NJW167-True RMS AC/DC Clamp Meter with ISO Certificate

• Measures AC/DC current, AC/DC voltage, resistance, capacitance, frequency, duty cycle, and temperature with a type K thermocouple probe
• True RMS AC measurements
• Non-contact AC voltage detector in clamp tip
• Low battery indication and auto power-off
• 50,000 count LCD with backlight
• Conforms to EN61010 Cat. III 600 V
• Jaw Opening: 1.2" (30 mm)
• Includes set of test leads, temperature probe, batteries, and soft carrying case

Specifications

• Voltage Readings: AC/DC
• Current Readings: AC/DC

Additional Specifications

• AC/DC Current Range: 50.00, 500.0 A
• Accuracy: AC: ±(2.8% rdg. +30 dgt.);DC: ±(2.5% rdg. +30 dgt.), ±(1.0% rdg. +30 dgt.), ±(0.1% rdg. +4 dgt.), ±(1.0% rdg. +4 dgt.), ±(0.5% rdg. +10 dgt.), ±(3.5% rdg. +10 dgt.)
• AC Voltage Range: 500.00 mV, 5.0000, 50.000, 500.00, 750.0 V
• DC Voltage Range: 500.00 mV, 5.0000, 50.000, 500.00, 1000.0 V
• Resistance Range: 500.00 mV, 5.0000, 50.000, 500.00, 1000.0 V
• Frequency Range: 10.000 kHz
• Capacitance Range: 500.00, 5000.0 nF, 50.00, 500.0 μF, 5.000 mF
• Temperature Range: -100.0 to 1000.0 °C/-148.0 to 1832.0 °F
