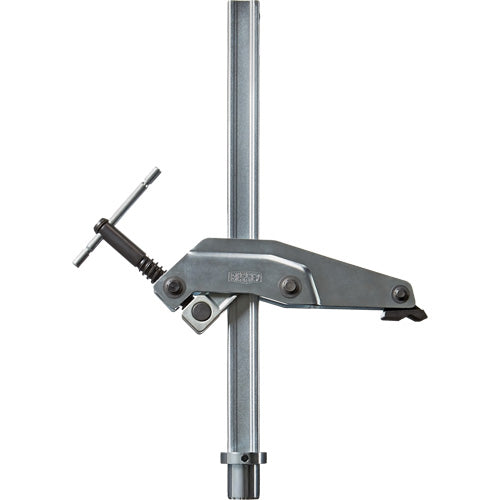

NJS262-Welding Table Clamp

• Fits 28 mm matrix welding tables
• The spindle is located on the outside for free access to the work area and to protect against welding spatter
• Special, sturdy V-grooved pressure plate, ideal even for clamping round or square workpieces
• Particularly suited to clamping with tight of space constraints

Specifications

• Clamping Capacity: 12" (305 mm)
• Throat Depth: 4-3/4" (121 mm)
• Clamping Force: 1000 lbs.

Additional Specifications

• Bolt: 28 mm
• Rail Profile: 1-1/8" x 7/16"
• Weight: 5.13 lbs.
