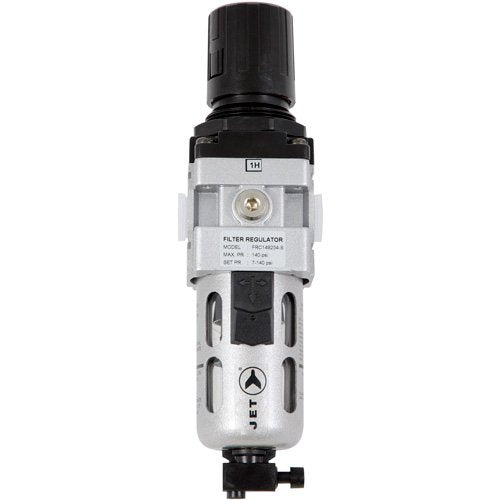

NIS684 - AFRI38 Intermediate Air Filter & Regulator Combination

NIS684 - AFRI38 Intermediate Air Filter & Regulator Combination

by TG Store
SKU: NIS684
$103.88 - $103.88
$103.88
$103.88 - $103.88
$103.88

Specifications:

  • Connection Size: 3/8" NPT
  • Operating Pressure: 145 PSI

Description

  • Air filter and regulator combined in one unit
  • Air filter is designed to eliminate dust, water, and other impurities from reaching air tool, extending tool life
  • Air regulator governs air flow to desired PSI air pressure
  • Regulators uses a Non Raising "Press to Lock" adjusting knob for locking at any set pressure
  • Regulators work on a diaphragm-operated relieving-type mechanism with pressure compensated by balanced poppet
  • Bowl Filter Size: 32 ml (1.08 oz.)
  • Width: 2.17"
  • Max. Air Flow: 64 CFM (1800 LPM)
  • Pressure Gauge Port Size: 1/8"
  • Temperature Range: 0°C to 60°C (32°F to 140°F)
  • Height: 8.66"
    •
