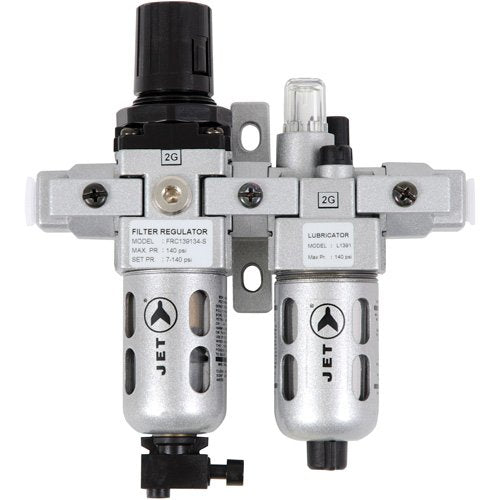

NIS663 - AFRLCM14 2-Piece Miniature Air Filter, Regulator & Lubricator

NIS663 - AFRLCM14 2-Piece Miniature Air Filter, Regulator & Lubricator

by TG Store
SKU: NIS663
$164.15 - $164.15
$164.15
$164.15 - $164.15
$164.15

Specifications:

  • Connection Size: 1/4" NPT
  • Operating Pressure: 145 PSI

Description

  • A combination of 2 Modular units - Filter Regulator and Lubricator connected together using a spacer block with a built-in wall mounting bracket and piping adaptors
  • Air filter is designed to eliminate dust water and other impurities from reaching air tool extending tool life
  • Lubricator device is indispensable for air generated equipment atomizing lubricant into the compressed air, allowing it to reach and lubricate the internal parts of the air tool
  • Air regulator governs air flow to desired PSI air pressure
  • Bowl Filter Size: 9 ml (0.3 oz.)
  • Bowl Lubricator Size: 20 ml (0.68 oz)
  • Height: 6.69" (170 mm)
  • Width: 5.75" (146 mm)
  • Max. Air Flow: 18 CFM (500 LPM)
  • Pressure Gauge Port Size: 1/8"
  • Temperature Range: 0°C to 60°C (32°F to 140°F)
    •
