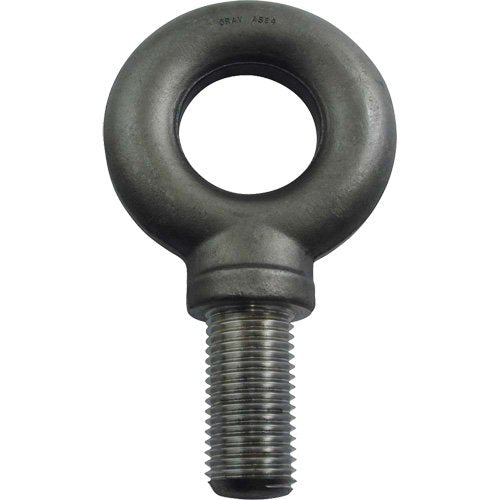

MP576-Alloy Steel Eye Bolt

• For cold weather working environments down to -40°C/-40°F
• Proof tested in accordance with ASTM F 541 and Federal Spec. ANSI B18.15
• Rated capacity is for 0° vertical pulls

Specifications

• Working Load Limit: 47600 lbs. (23.8 tons)/47600 lbs.
• Eye Diameter: 3-1/4"
• Shank Length: 4"
• Body Style: With Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• Thread Size: 2"-4.5
• Outer Eye Diameter: 6-7/8"
• Thread Size (UNC-2A): 2"-4.5
• Overall Length: 11.88"
• Centre of Eye to Shoulder: 11.88"
• Net Weight: 16.7 lbs.
• Material: Grade 8260 Alloy Steel
