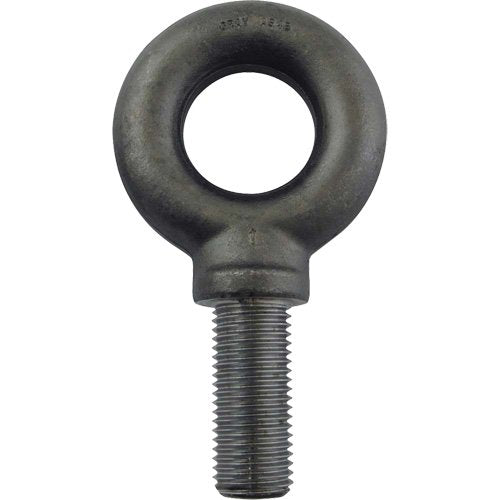

MP575-Alloy Steel Eye Bolt

MP575-Alloy Steel Eye Bolt

by Gray Tools
SKU: MP575
$359.66 - $359.66
$359.66
$359.66 - $359.66
$359.66
  • For cold weather working environments down to -40°C/-40°F
  • Proof tested in accordance with ASTM F 541 and Federal Spec. ANSI B18.15
  • Rated capacity is for 0° vertical pulls

Specifications

  • Working Load Limit: 26600 lbs. (13.3 tons)/26600 lbs.
  • Eye Diameter: 2-1/2"
  • Shank Length: 3-1/2"
  • Body Style: With Shoulder
  • Shank Threading: Fully Threaded

Additional Specifications

  • Thread Size: 1-1/2"-6
  • Outer Eye Diameter: 5-3/16"
  • Thread Size (UNC-2A): 1-1/2"-6
  • Overall Length: 9.47"
  • Centre of Eye to Shoulder: 9.47"
  • Net Weight: 7.77 lbs.
  • Material: Grade 8260 Alloy Steel
