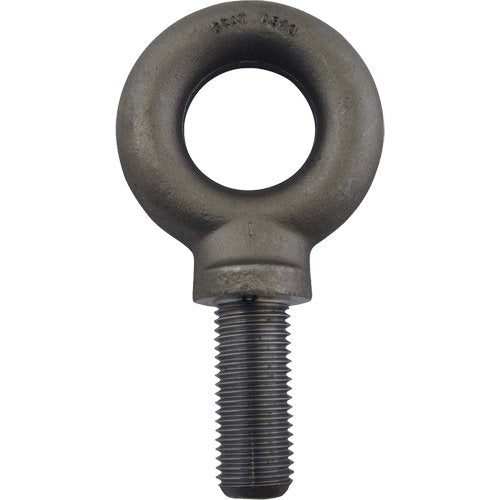

MP574-Alloy Steel Eye Bolt

• For cold weather working environments down to -40°C/-40°F
• Proof tested in accordance with ASTM F 541 and Federal Spec. ANSI B18.15
• Rated capacity is for 0° vertical pulls

Specifications

• Working Load Limit: 18400 lbs. (9.2 tons)/18400 lbs.
• Eye Diameter: 2-3/16"
• Shank Length: 3"
• Body Style: With Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• Thread Size: 1-1/4"-7
• Outer Eye Diameter: 4-7/16"
• Thread Size (UNC-2A): 1-1/4"-7
• Overall Length: 8.22"
• Centre of Eye to Shoulder: 8.22"
• Net Weight: 4.68 lbs.
• Material: Grade 8260 Alloy Steel
