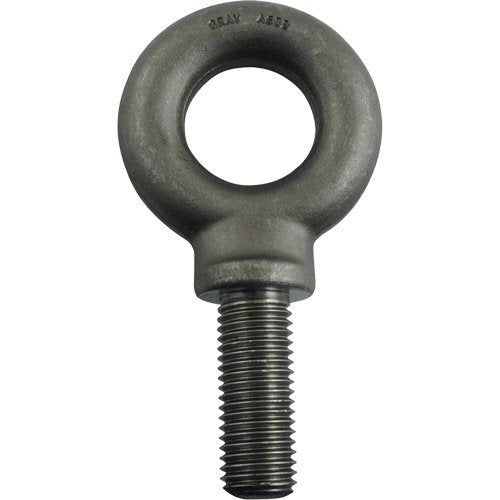

MP573-Alloy Steel Eye Bolt

• For cold weather working environments down to -40°C/-40°F
• Proof tested in accordance with ASTM F 541 and Federal Spec. ANSI B18.15
• Rated capacity is for 0° vertical pulls

Specifications

• Working Load Limit: 11600 lbs. (5.8 tons)/11600 lbs.
• Eye Diameter: 1-13/16"/3-9/16"
• Shank Length: 2-1/2"
• Body Style: With Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• Thread Size: 1"-8
• Outer Eye Diameter: 3-9/16"
• Thread Size (UNC-2A): 1"-8
• Overall Length: 6.66"
• Centre of Eye to Shoulder: 6.66"
• Net Weight: 2.36 lbs.
• Material: Grade 8260 Alloy Steel
