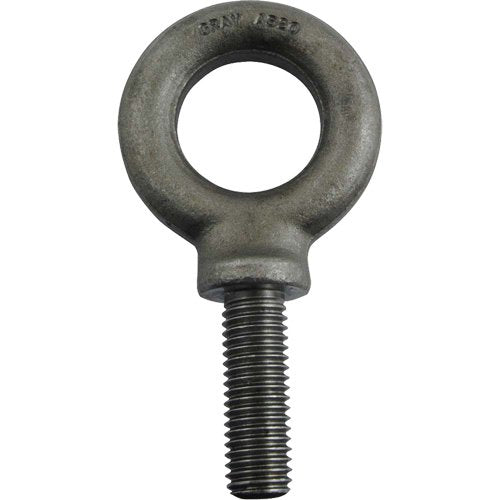

MP570-Alloy Steel Eye Bolt

• For cold weather working environments down to -40°C/-40°F
• Proof tested in accordance with ASTM F 541 and Federal Spec. ANSI B18.15
• Rated capacity is for 0° vertical pulls

Specifications

• Working Load Limit: 4300 lbs. (2.15 tons)/4300 lbs.
• Eye Diameter: 1-3/8"
• Shank Length: 1-3/4"
• Body Style: With Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• Thread Size: 5/8"-11
• Outer Eye Diameter: 2-1/2"
• Thread Size (UNC-2A): 5/8"-11
• Overall Length: 4-3/4"
• Centre of Eye to Shoulder: 4-3/4"
• Net Weight: 0.7 lbs.
• Material: Grade 8260 Alloy Steel
