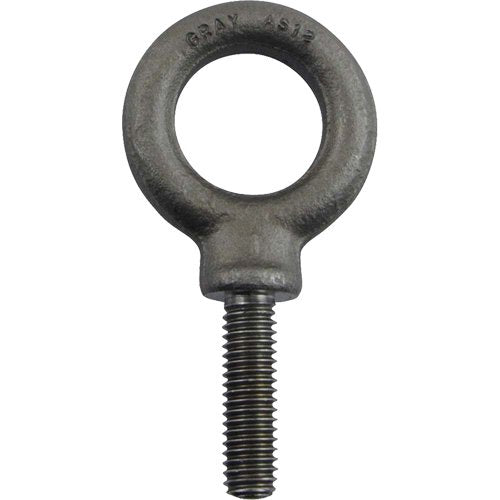

MP568-Alloy Steel Eye Bolt

• For cold weather working environments down to -40°C/-40°F
• Proof tested in accordance with ASTM F 541 and Federal Spec. ANSI B18.15
• Rated capacity is for 0° vertical pulls

Specifications

• Working Load Limit: 1480 lbs. (0.74 tons)/1480 lbs.
• Eye Diameter: 1"
• Shank Length: 1-1/4"
• Body Style: With Shoulder
• Shank Threading: Fully Threaded

Additional Specifications

• Thread Size: 3/8"-16
• Outer Eye Diameter: 1-21/32"
• Thread Size (UNC-2A): 3/8"-16
• Overall Length: 3.28"
• Centre of Eye to Shoulder: 3.28"
• Net Weight: 0.18 lbs.
• Material: Grade 8260 Alloy Steel
