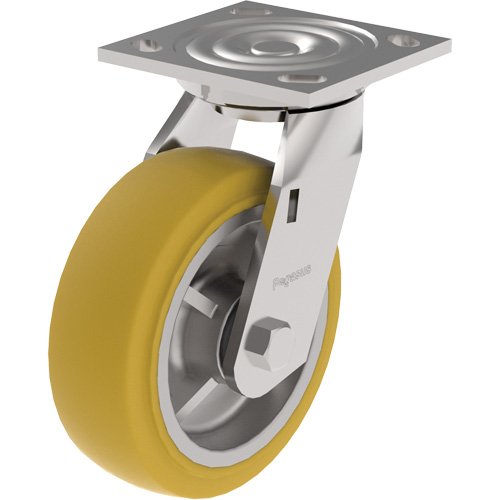

MP269-21 Series Medium-Duty Caster

Specifications

• Wheel Diameter: 6" (152.4 mm)
• Capacity: 1200 lbs. (544.3 kg.)
• Wheel Material: Urethane
• Caster Type: Swivel
• Frame Material: Steel
• Tread Width: 2" (50.8 mm)
• Bolt Hole Spacing: 2-5/8" x 3-5/8" (67 mm x 92 mm) - 3" x 3" (76 mm x 76 mm)
• Bolt Hole Size: 3/8" (9.52 mm)
• Plate Size: 4" x 4-1/2" (102 mm x 114 mm)

Additional Specifications

• Colour: Yellow
• Bearing Type: Roller Bearing
• Swivel Offset: 2"
• Shore Hardness: 92° A
• Inner Wheel Material: 92° A
• Tread Type: Flat
