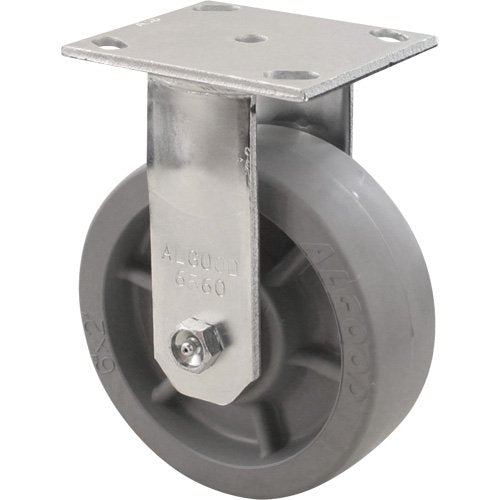

MP056-Emaxx™ Caster

• 3/4" diameter heavy-duty kingpin
• 1/2" zerk axle and lock nut
• 5/16" diameter upper race; hardened steel load bearings
• Roller bearings with drilled hardened steel spanner bushing and plastic side washers
• Virtually maintenance free
• Corrosion resistant bright zinc finish
• Excellent for stock carts, platform trucks, heavy service equipment, garbage bins, wire shelving units, factory use and more

Specifications

• Wheel Diameter: 5" (127 mm)
• Capacity: 1000 lbs. (453.6 kg.)
• Wheel Material: Envirothane™
• Caster Type: Rigid
• Frame Material: Steel
• Tread Width: 2" (50.8 mm)
• Bolt Hole Spacing: 2-5/8" - 3" (67 mm x 76 mm)
• Bolt Hole Size: 3/8" (9.52 mm)
• Plate Size: 3-27/32'' x 4-1/2'' (97.6 mm x 114.3 mm)

Additional Specifications

• Bearing Type: Roller
• Swivel Radius: 4-7/16"
• Overall Height: 6-1/2"
• Wheel Colour: Grey
• Grey
