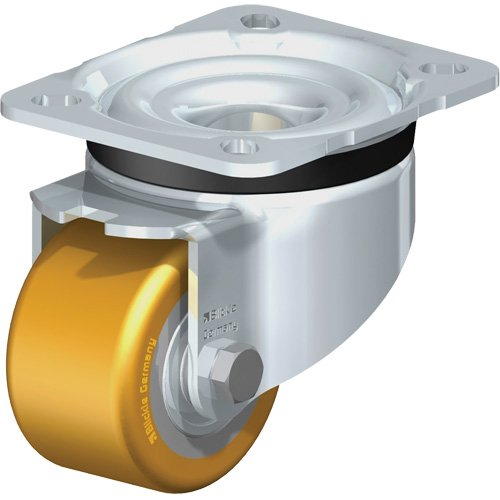

MO724-Heavy-Duty Caster

• Strong, zinc-plated, blue-passivated, Cr6-free pressed steel bracket
• Bracket features double ball bearing in the swivel head and strong central kingpin
• Bracket features swivel head seal
• Minimum swivel head play, smooth rolling characteristic, and increased service life due to the special dynamic Blickle riveting process
• High-quality polyurethane elastomer Blickle Extrathane® wheel material
• Non-marking and non-staining wheel
• High chemical resistance to many aggressive substances
• Operating temperature of -20 °C to +70 °C, temporarily up to +90 °C, and reduced load capacity of over +40 °C

Specifications

• Wheel Diameter: 2-3/5" (65 mm)
• Capacity: 1377 lbs. (625 kg.)
• Wheel Material: Polyurethane
• Caster Type: Swivel
• Frame Material: Steel
• Tread Width: 1-3/5" (40 mm)
• Bolt Hole Spacing: 3-1/8" x 2-3/8" (80 mm x 60 mm)
• Bolt Hole Size: 11/32" (9 mm)
• Plate Size: 3-9/10" x 3-1/3" (100 mm x 85 mm)

Additional Specifications

• Tread & Tire Hardness: 92° Shore A
• Bearing Type: Ball Bearing
• Total Height: 3-1/2" (90 mm)
• Colour: Brown
