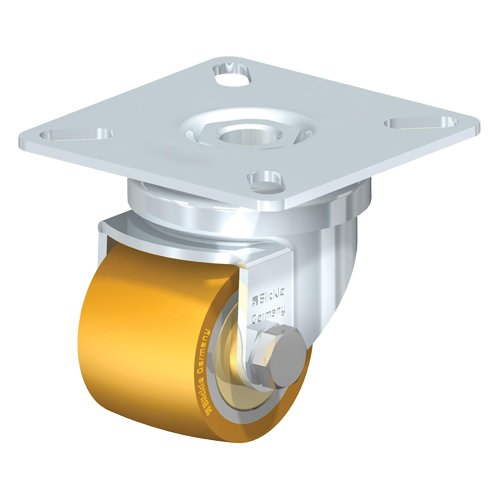

MO717-Low-Profile Caster

• Swivel rig with double ball bearing in the swivel head
• Minimal swivel head play and smooth rolling characteristics
• Medium heavy duty rigs, with top plate fitting
• High abrasion resistance, cut and tear propagation resistance
• High operational comfort and low-noise operation
• Operating temperature: -15° F to +160° F

Specifications

• Wheel Diameter: 1-3/8" (35 mm)
• Capacity: 220 lbs. (100 kg.)
• Wheel Material: Polyurethane
• Caster Type: Swivel
• Frame Material: Steel
• Tread Width: 1-1/8" (28.6 mm)
• Bolt Hole Spacing: 1-1/2" x 1-1/2" (38 mm x 38 mm) - 1-7/8" x 1-7/8" (48 mm x 48 mm)
• Bolt Hole Size: 1/4" (6.35 mm)
• Plate Size: 2-3/8" x 2-3/8" (60 mm x 60 mm)

Additional Specifications

• Tread & Tire Hardness: 92° Shore A
• Bearing Type: Ball Bearing
• Total Height: 2"
