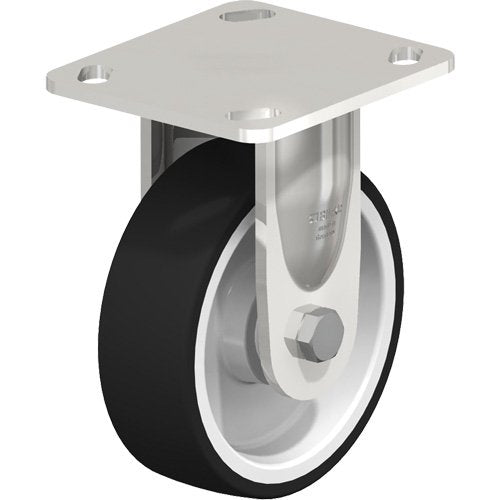

MO711-Caster

• Pressed steel rigid caster
• Medium heavy duty rigs, with top plate fitting
• High operational comfort and low-noise operation
• Low rolling and swivel resistance for smooth running performance
• Operating temperature: -15° F to +175° F

Specifications

• Wheel Diameter: 5" (127 mm)
• Capacity: 330 lbs. (150 kg.)
• Wheel Material: Rubber
• Caster Type: Rigid
• Frame Material: Stainless Steel
• Tread Width: 1-9/16" (40 mm)
• Bolt Hole Spacing: 2-5/8" x 3-5/8" (67 mm x 92 mm) - 3" x 3" (76 mm x 76 mm)
• Bolt Hole Size: 3/8" (9.52 mm)
• Plate Size: 4" x 4-1/2" (102 mm x 114 mm)

Additional Specifications

• Tread & Tire Hardness: 65° Shore A
• Bearing Type: Ball Bearing
• Total Height: 6-1/8"
