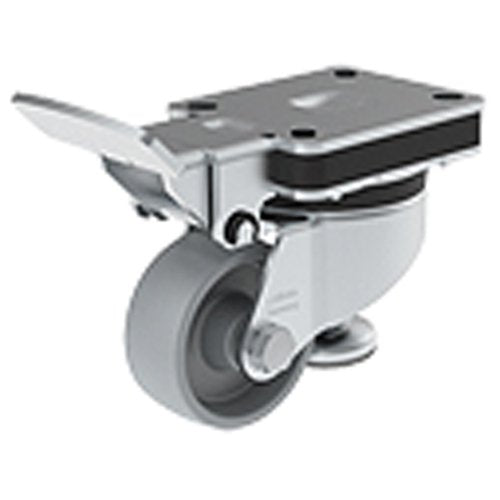

MO699-Heavy-Pressed Caster

• Swivel rig with double ball bearing in the swivel head
• Minimal swivel head play and smooth rolling characteristics
• Medium heavy duty rigs, with top plate fitting
• Low rolling and swivel resistance for smooth running performance
• High chemical resistance to many aggressive substances
• Operating temperature: -15° F to +175° F

Specifications

• Wheel Diameter: 3" (76 mm)
• Capacity: 660 lbs. (300 kg.)
• Wheel Material: Steel
• Caster Type: Swivel
• Frame Material: Steel
• Tread Width: 1-1/2" (38 mm)
• Bolt Hole Spacing: 3-1/4" x 2-3/8" (83 mm x 60 mm)
• Bolt Hole Size: 11/32" (9 mm)
• Plate Size: 4" x 3-3/8" (102 mm x 86 mm)

Additional Specifications

• Tread & Tire Hardness: 70° Shore D
• Bearing Type: Ball Bearing
• Total Height: 4-3/4"
