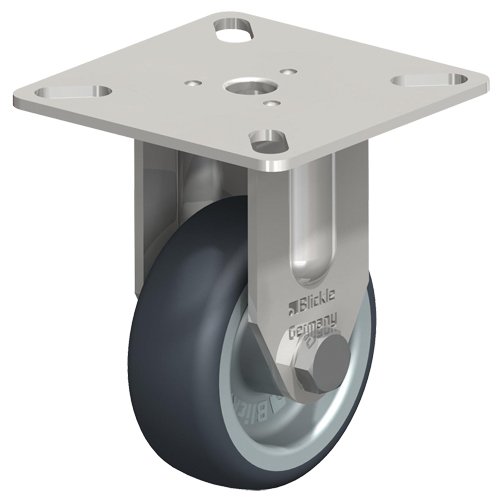

MO634-Caster

• Pressed steel rigid caster
• Medium heavy duty rigs, with top plate fitting
• Low rolling and swivel resistance for smooth running performance
• High operational comfort and low-noise operation
• Operating temperature: -4° F to +140° F
• High abrasion resistance

Specifications

• Wheel Diameter: 3" (76 mm)
• Capacity: 165 lbs. (75 kg.)
• Wheel Material: Thermoplastic Rubber-Elastomer
• Caster Type: Rigid
• Frame Material: Stainless Steel
• Tread Width: 1" (25.4 mm)
• Bolt Hole Spacing: 1-1/2" x 1-1/2" (38 mm x 38 mm) - 1-7/8" x 1-7/8" (48 mm x 48 mm)
• Bolt Hole Size: 1/4" (6.35 mm)
• Plate Size: 2-3/8" x 2-3/8" (60 mm x 60 mm)

Additional Specifications

• Tread & Tire Hardness: 85° Shore A
• Bearing Type: Plain Bore
• Total Height: 4"
